Active and Passive Anchor Design in Wollongong: Ground Anchors That Hold in Complex Coastal Geology

The most common mistake we see on Wollongong sites is treating an anchor design as a generic pull-out calculation. The Illawarra escarpment and coastal plain create a geological transition zone where anchors cross from residual clay into fractured coal measures or latite within a few meters. A passive anchor designed for sandstone might fail completely if the grout bond intersects a weathered clay seam at the wrong depth. This is where our local experience makes the difference. We run site-specific investigation programs using test pits to log the colluvial profile, followed by in-situ permeability testing to understand groundwater influence on grout placement. Every anchor we design is backed by AS 4678:2002 requirements and the specific ground conditions encountered at the Illawarra site.

An anchor is only as reliable as the grout-ground bond — and in Wollongong, that bond changes every few meters as you cross from colluvium into fractured coal measures.

How we work

What many engineers outside the region don't appreciate is how the Bulli and Wongawilli coal seams affect anchor performance. In our experience, anchors installed through the upper Hawkesbury Sandstone into coal measure strata often show markedly different load transfer characteristics than textbook values would suggest. The difference between an active and passive anchor isn't just about prestressing — it's about how the anchor interacts with rock mass relaxation over time. We routinely combine anchor design with slope stability analysis for escarpment sites, particularly where the anchor will cross the shale-sandstone interface. This matters because a passive anchor only engages after deformation occurs, and if that deformation is uncontrolled in a coal seam roof, you've got a problem. Our designs also account for the aggressive groundwater chemistry common in the Southern Coalfield, with double-corrosion protection specified per AS 4678 for permanent anchors in aggressive environments. The deep excavations we support often require mixed anchor arrays — active anchors at the top to limit movement near adjacent structures, passive anchors lower down where deformation can be tolerated.

Site-specific factors

A 15-meter excavation on a Crown Street site in Wollongong CBD had us called in after the original anchored wall design showed excessive deflection. The issue wasn't the anchor capacity on paper — it was that the passive zone in the lower anchors fell within a highly fractured section of the Bulli Seam. Groundwater from the overlying Hawkesbury Sandstone was migrating through the coal cleats, softening the grout-ground interface before the grout had fully cured. The wall moved 40 millimeters before they stopped work. We redesigned the anchor layout with longer bond lengths in the passive zone, moved the fixed anchor deeper into competent sandstone, and specified post-grouting through the coal seam interval. The revised system held within 5 millimeters of predicted deflection. The lesson is clear: in Wollongong's layered geology, anchor design without site-specific investigation is gambling. A CPT test through the overburden would have flagged the perched water table before excavation even started.

Reference parameters

Parameter	Typical value
Design standard	AS 4678:2002 Earth-retaining structures
Anchor type	Active (prestressed) and passive (non-prestressed)
Bond length verification	Field proof testing to 1.25× working load
Corrosion protection	Double protection (DP) per AS 4678 for permanent anchors
Grout specification	Neat cement grout, w/c ratio ≤0.45, minimum 28-day strength 30 MPa
Typical anchor capacity range	100 kN to 2,000+ kN depending on ground conditions
Ground investigation requirement	Borehole log at each anchor location per AS 1726
Monitoring	Load cells and lift-off testing for critical structures

Associated technical services

Active anchor design for retaining walls

Prestressed anchors for soldier pile and diaphragm walls where movement must be controlled. We design the free length, bond length, and prestress level based on site-specific ground investigation and adjacent structure sensitivity.

Passive anchor systems for slope stabilization

Non-prestressed rock bolts and soil nails for escarpment stabilization and landslide remediation. Design includes bond length verification through the weathered zone and into competent rock, with drainage integration.

Proof testing and anchor monitoring

On-site proof testing to 1.25× working load per AS 4678, plus long-term load monitoring using load cells for critical anchors. We provide lift-off testing protocols and acceptance criteria aligned with the design assumptions.

Quick answers

What's the difference between active and passive anchors?

Active anchors are prestressed during installation — we apply a jacking load and lock it off so the anchor actively applies force to the structure. This limits movement from the start, which is critical near existing buildings or roads. Passive anchors only develop resistance when the structure moves and stretches the anchor. In Wollongong's variable ground, we often specify active anchors at the top of an excavation where movement tolerance is tight, and passive anchors lower down where some deformation is acceptable.

How much does anchor design and testing cost in Wollongong?

For a typical Wollongong project, anchor design including ground investigation, load calculations, drawings, and proof testing supervision ranges from approximately AU$1,730 for a simple single-anchor verification to around AU$5,970 for a full retaining wall anchor array with monitoring. The exact cost depends on the number of anchors, ground complexity, and whether permanent corrosion protection is required.

What ground investigation is needed before anchor design?

At minimum, we need a borehole log per AS 1726 at each anchor location, or at close enough spacing to characterize the ground variability. In the Illawarra, the transition from residual clay into fractured coal measures or sandstone is critical — we need to know exactly where the fixed anchor will sit. We often supplement boreholes with in-situ permeability tests to understand groundwater effects on grouting.

How do you handle corrosion in permanent anchors?

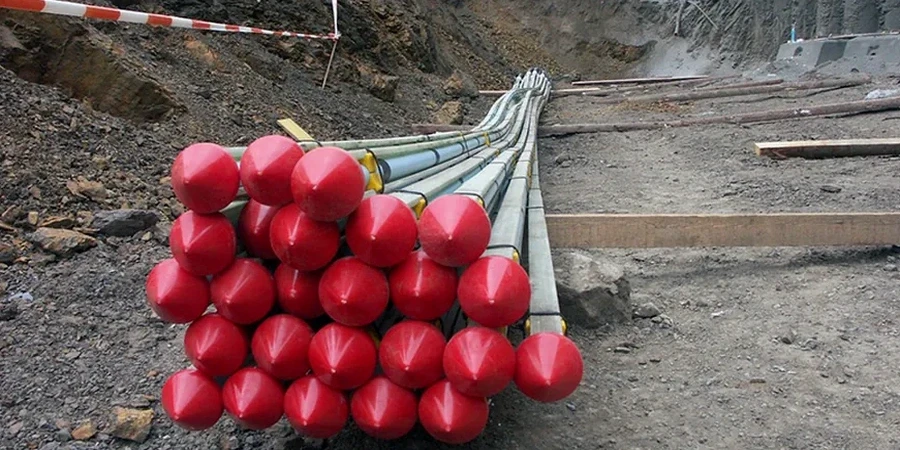

Wollongong's coastal environment and the aggressive groundwater in the Southern Coalfield require careful corrosion protection. For permanent anchors, we specify double protection (DP) per AS 4678 — this means the tendon is isolated from the grout by a corrugated sheath, and the grout itself is covered by an outer sheath. All exposed anchor heads receive additional protection with grease-filled caps. Temporary anchors with a design life under two years can use single protection.
